Overview
Our XPS Tile Backer Board Production Line is a fully automatic integrated manufacturing system specially developed for continuous production of XPS tile backer boards. Widely adopted in wet area construction, this complete line covers XPS substrate feeding, surface treatment, fiberglass mesh lamination, polymer mortar coating, rolling, curing, fixed-length cutting and finished board stacking.
The finished XPS tile backer board consists of an extruded polystyrene foam core reinforced with fiberglass mesh and cement polymer mortar on both sides. It combines outstanding thermal insulation, zero water absorption and high surface adhesion, becoming the preferred underlayment material for tile installation in bathrooms, kitchens, floor heating projects and exterior walls worldwide.
Equipped with mature continuous composite technology, the line realizes stable large-volume production. It ensures consistent flatness, dimensional tolerance and surface bonding strength of finished boards, helping manufacturers produce premium building waterproof & insulation panels with lower labor and material costs.
Working Flow

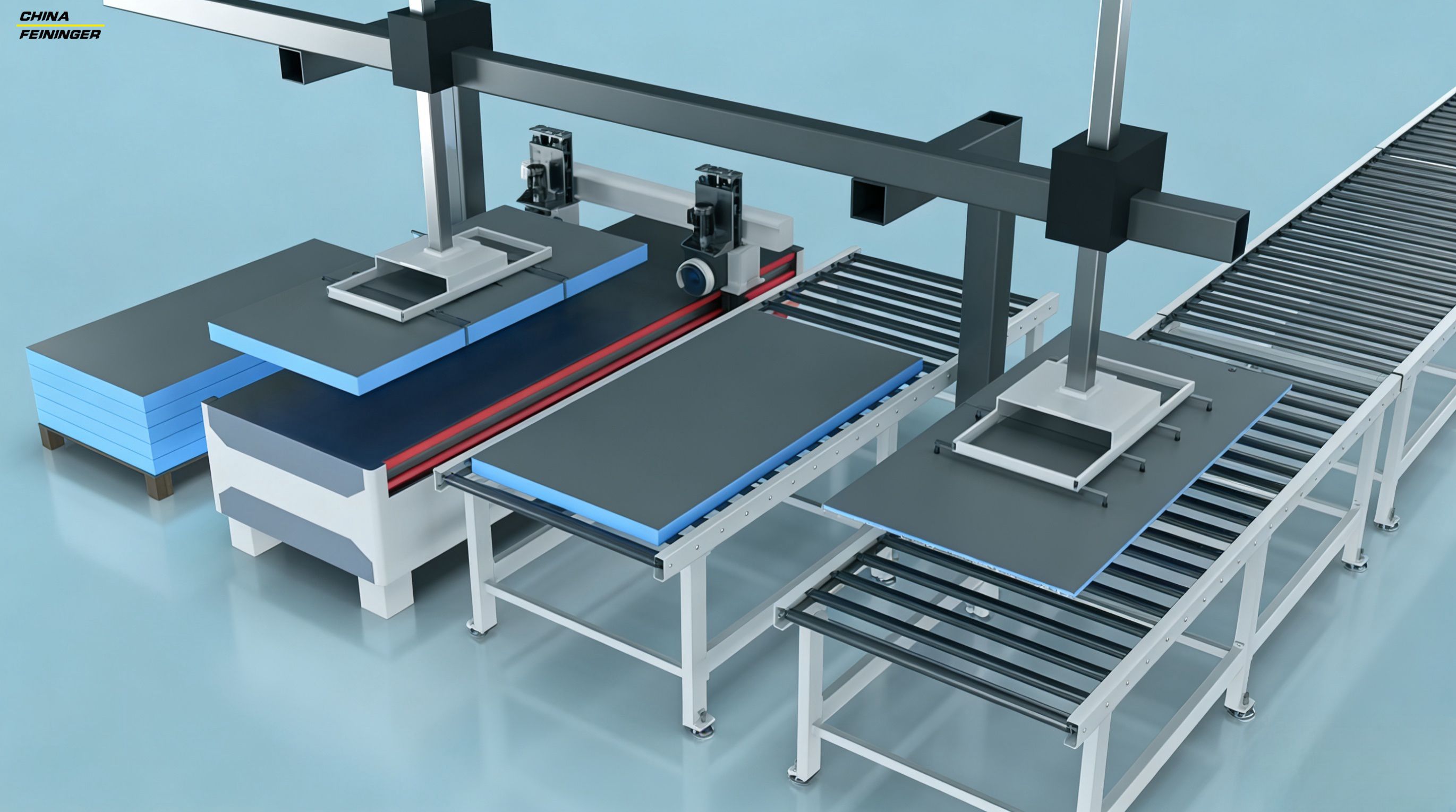

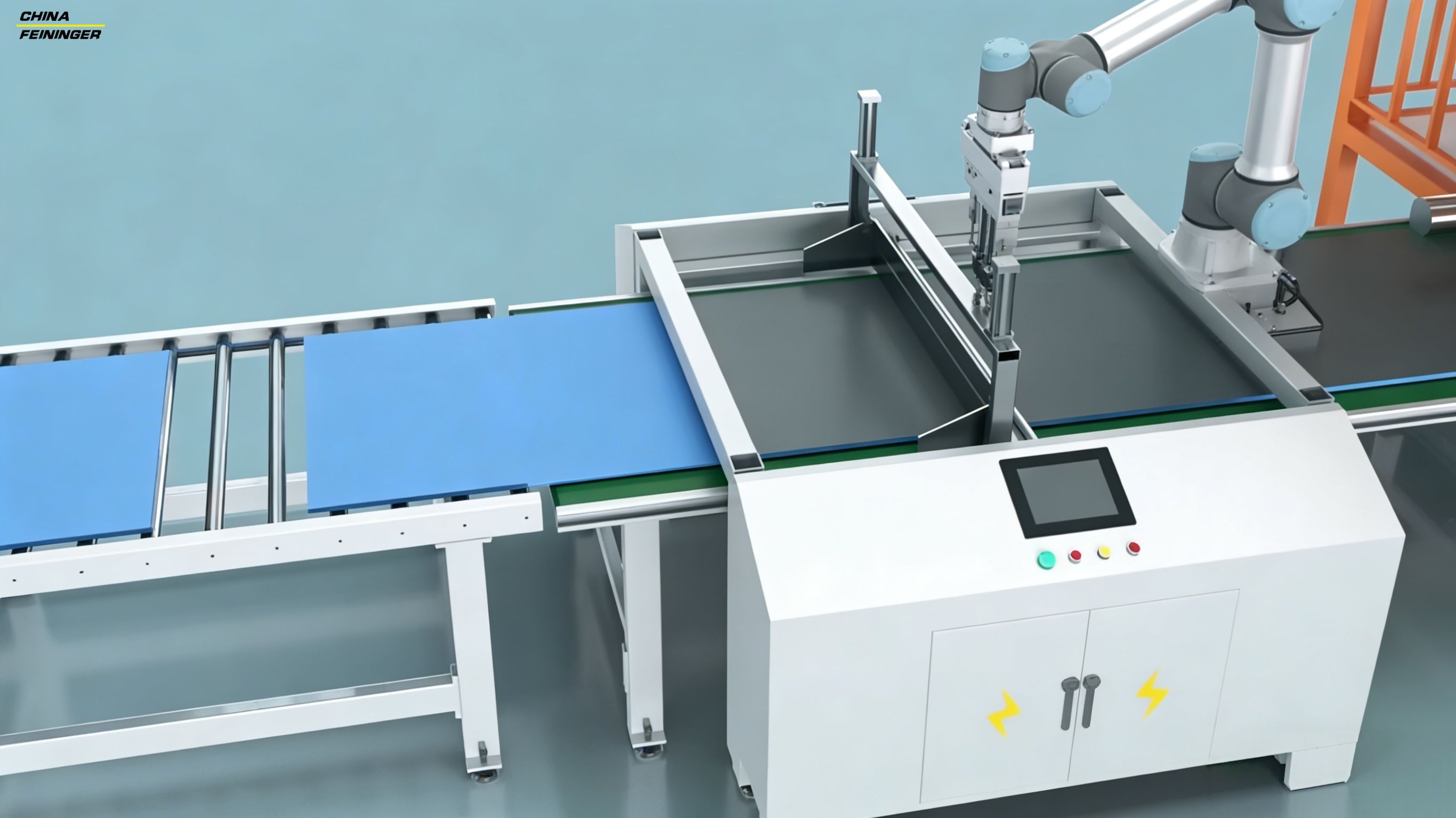

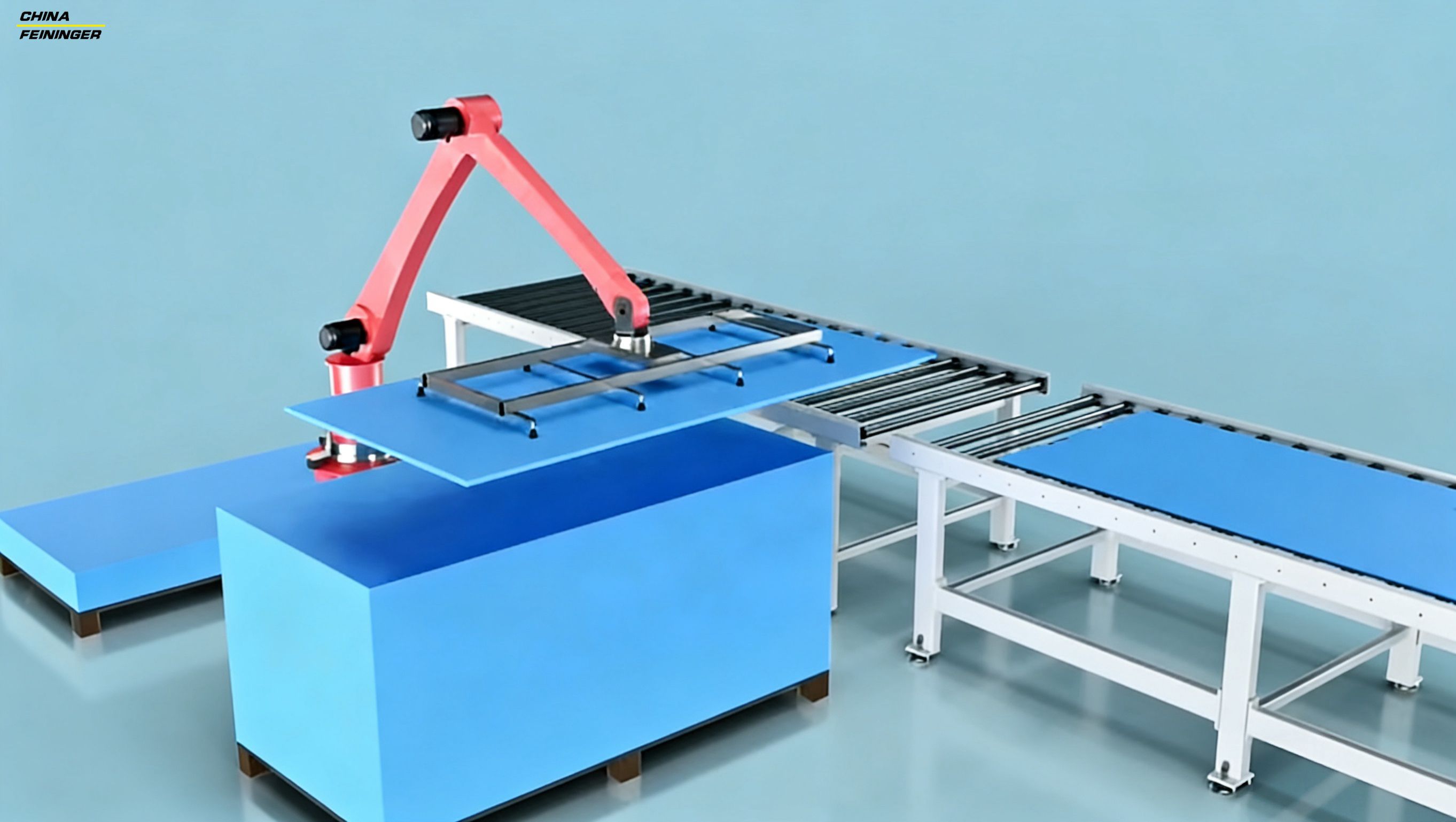

Raw material preparation → Automatic XPS board feeding → Surface grinding & cleaning → Double-side fiberglass mesh laying → Uniform modified mortar coating → Precision roller pressing & leveling → Constant temperature curing → Automatic fixed-length cutting → Conveying & stacking → Inspection & packaging
Core Advantages of the Production Line
High Automatic OperationAdopts PLC intelligent control system. The whole production procedure runs continuously with minimal manual operation. It supports parameter memory, one-click startup and automatic fault reminding, effectively cutting labor input and raising output capacity.
Reliable Production & Stable Board QualityHigh-precision transmission and pressing units guarantee uniform mortar coating and flat board surface. Professional constant temperature curing system avoids uneven hardening. Produced backer boards feature stable size, excellent compression resistance, low thermal conductivity and superior waterproof performance.
Flexible Specification CustomizationThe line supports adjustable width and thickness to manufacture different sizes of XPS tile backer boards. It can adapt to multiple raw material formulas to satisfy diversified demands of residential decoration, commercial projects and exterior insulation markets.
Energy-saving & Eco-friendlyOptimized power configuration reduces energy consumption. No harmful wastewater or exhaust during operation. Final XPS tile backer boards are CFC-free, conforming to international environmental standards for construction materials. Less raw material waste improves overall material utilization.
Easy Maintenance & Long Service LifespanKey mechanical and electric components use high-quality wear-resistant accessories. Modular frame design simplifies daily inspection, overhaul and spare part replacement, lowering long-term operating costs and reducing equipment downtime.
Performance of Finished XPS Tile Backer Board
- Excellent Waterproof & Moisture ProofClosed-cell XPS core prevents water absorption permanently. Effectively stop moisture penetration, wall mildew, tile hollowing and falling off in wet zones.
- Superior Thermal InsulationLow thermal conductivity delivers stable heat insulation, ideal for floor heating systems and building energy-saving renovation.
- High Bonding Strength & RigidityDual-side fiberglass mesh and cement mortar reinforcement offer great impact resistance. Perfect adhesion for ceramic tiles, natural stone and mosaic.
- Lightweight & Easy InstallationLight board weight reduces building load. Simple to cut, drill and mount, greatly accelerating on-site construction progress.
- Anti-ageing & Good Flame RetardancyStable physical property against aging and corrosion. Flame retardant grade meets mainstream construction codes for interior and exterior application.
Application Scope
XPS tile backer boards manufactured on this line are extensively used for wall and floor tiling in bathrooms, shower rooms, kitchens. Also suitable for floor heating underlayment, interior renovation, external wall thermal insulation, hotels, hospitals, villas and various commercial wet-space projects.
Our Professional Service
We supply one-stop customized solution for XPS tile backer board production line. Services include layout design, equipment manufacturing, overseas installation & commissioning, operator technical training and long-term after-sales support. We can tailor production schemes according to clients’ factory space, target output and local market requirements, supporting partners to develop competitive insulation building materials.
