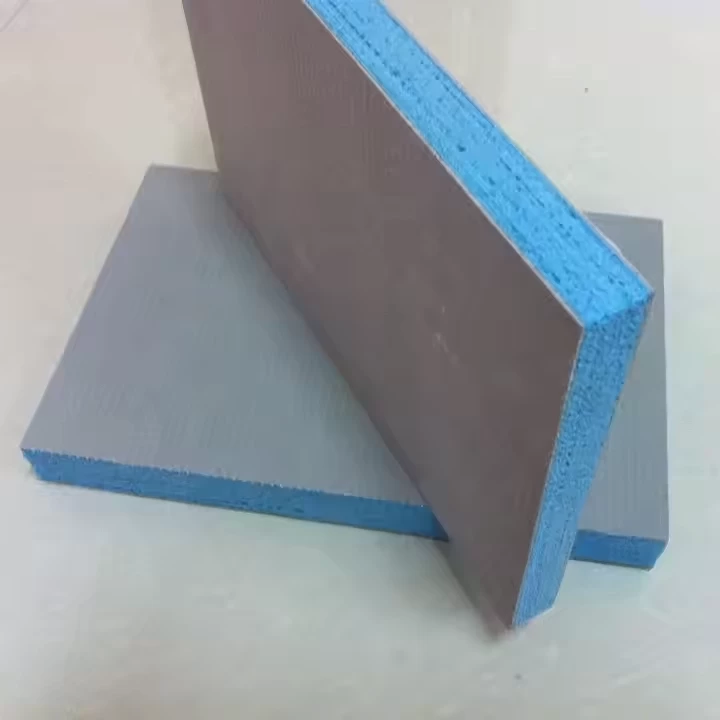

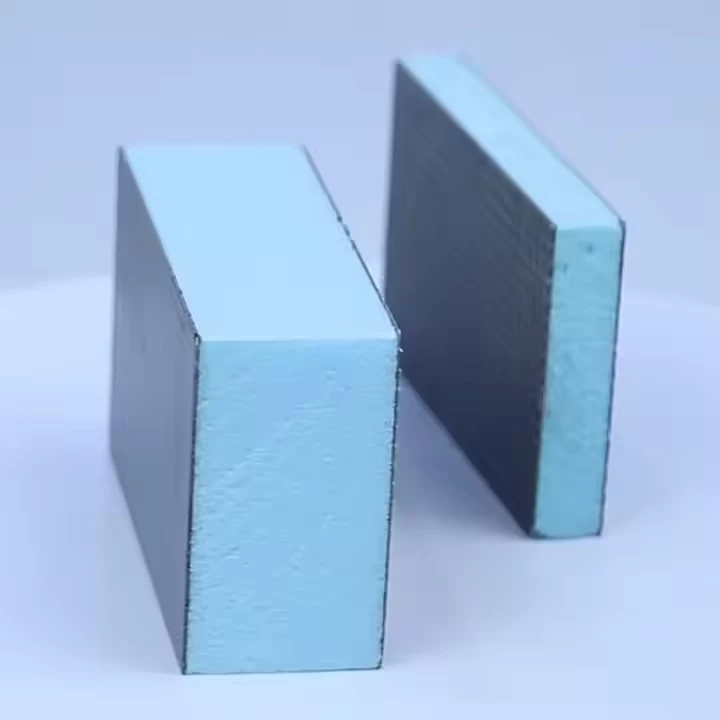

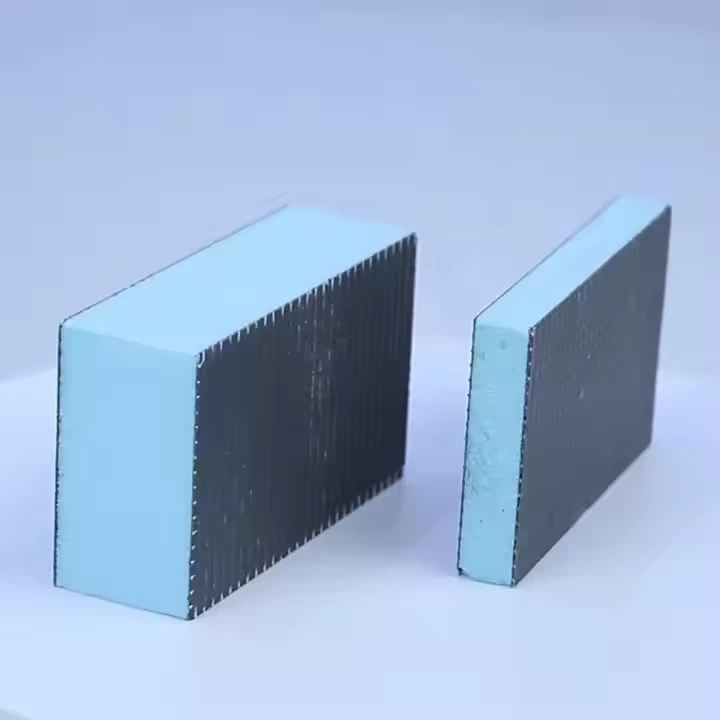

XPS Tile Backer Board

XPS Tile Backer Board is a lightweight, waterproof, and durable insulation board designed for use beneath tiles in wet areas like bathrooms, kitchens, and showers. Made from extruded polystyrene (XPS) foam, it provides excellent thermal insulation, high compressive strength, and resistance to mold and moisture. The surface is reinforced with cement and fiberglass mesh, making it ideal for direct tiling. Easy to cut and install, it helps create a stable and long-lasting tile foundation.

Inquiry Download
Description
XPS Tile Backer Board

XPS Tile Backer Board

XPS Tile Backer Board

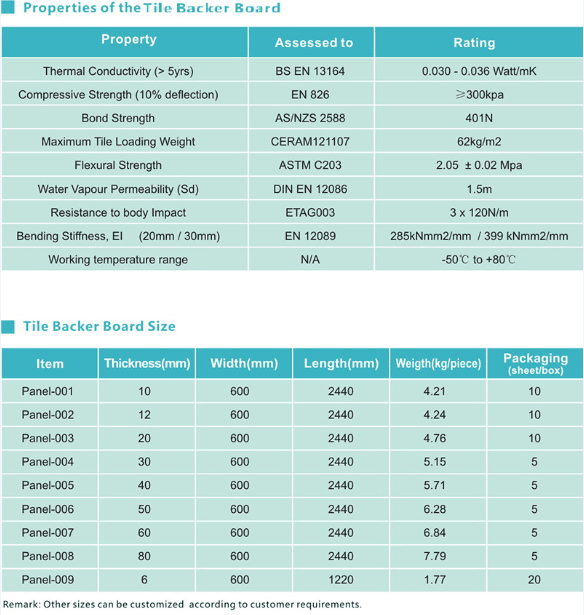

Key Attributes
AttributeValue
Application ScenarioHotel
Engineering Solution CapabilityComplete Solution, Others
After-sales ServiceOnline Technical Support, On-site Installation, On-site Guidance, On-site Inspection
Design StyleModern
Warranty Service5 Years
TypeX-ray Photoelectron Spectroscopy (XPS)
OriginJiangsu, China
BrandFeininger
ModelXPS Foam Board
CategoryXPS Board
ColorYellow or Blue, Gray Surface
Fire ResistanceB3, B2, B1
Thermal Conductivity0.030-0.033 W/(m·K)
SizeCustomizable
Compressive StrengthMin. 300 kPa
Product NameXPS Foam Board
ApplicationWall
Color XPSBlue Underfloor Heating Insulation Board
MaterialPolystyrene


Packaging & Shipping Info
               Attribute                Value
               Packaging Details                Thickness: 20mm, 30mm, 40mm, 45mm, 50mm, 75mm, 100mm
Pcs/Pack: 25, 16, 12, 11, 10, 6, 5
               Shipping Port                Nanjing Port
               Sales Unit                Single Item


Application

   This product is widely used in residential homes, hotels, and other damp areas such as bathrooms and showers as a waterproof and insulating layer for walls and floors.

  • Serves as a waterproof layer for walls and floors in wet areas.

  • Acts as an insulation layer under underfloor heating systems to prevent heat loss.

  • Used as partition walls within wood or steel frame structures.

  • Can replace traditional gypsum boards and cement boards, providing both insulation and waterproofing.

  • Used as protective casing for bathtubs, pipes, and other plumbing fixtures.

  • Easily and quickly shaped to create small shelves, washbasin supports, shower seats, and soap holders.

  • Combined with bending and molding techniques, it allows for various decorative designs to unleash unlimited creativity.

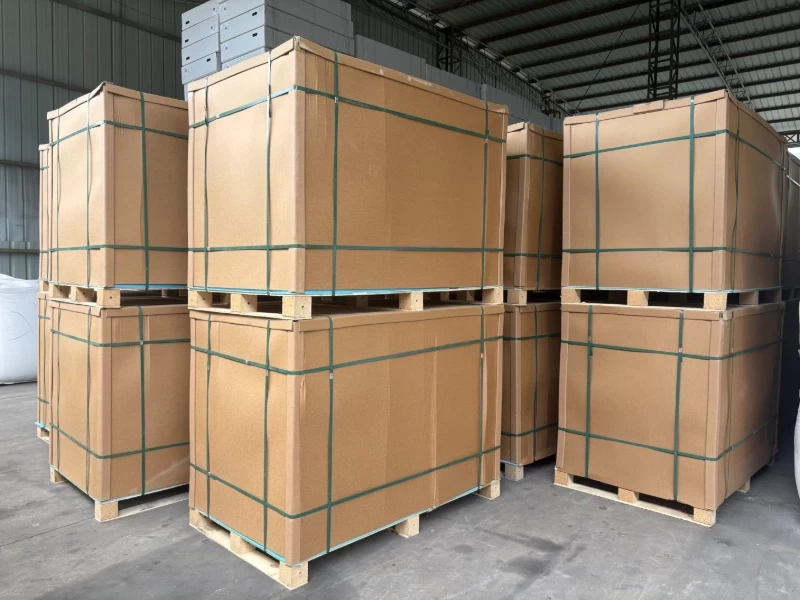

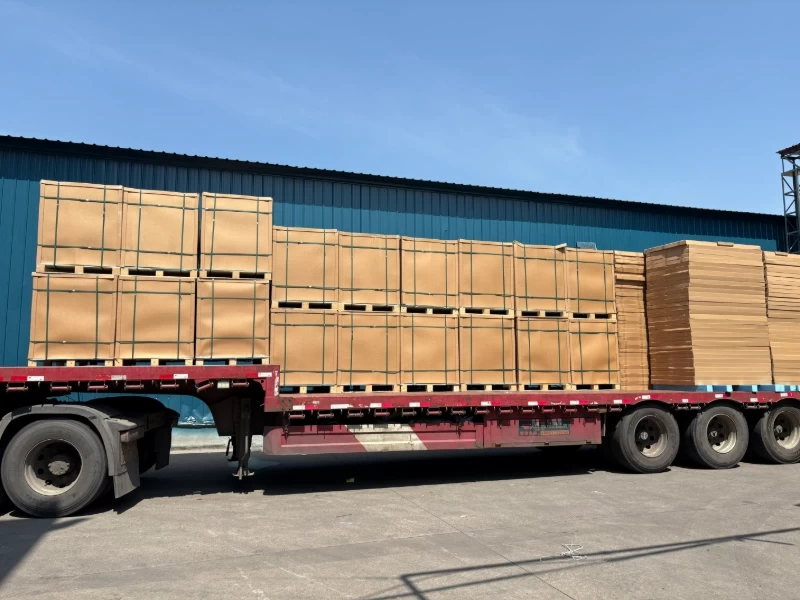

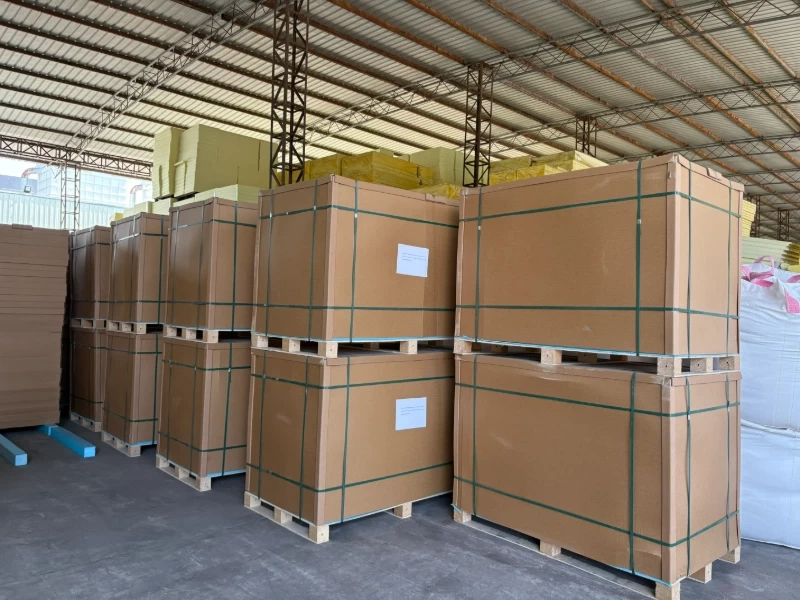

Packaging & Delivery Reference:

We provide actual photos showing how the XPS Tile Backer Boards are packed and shipped, ensuring you have a clear view of our standard logistics process.
