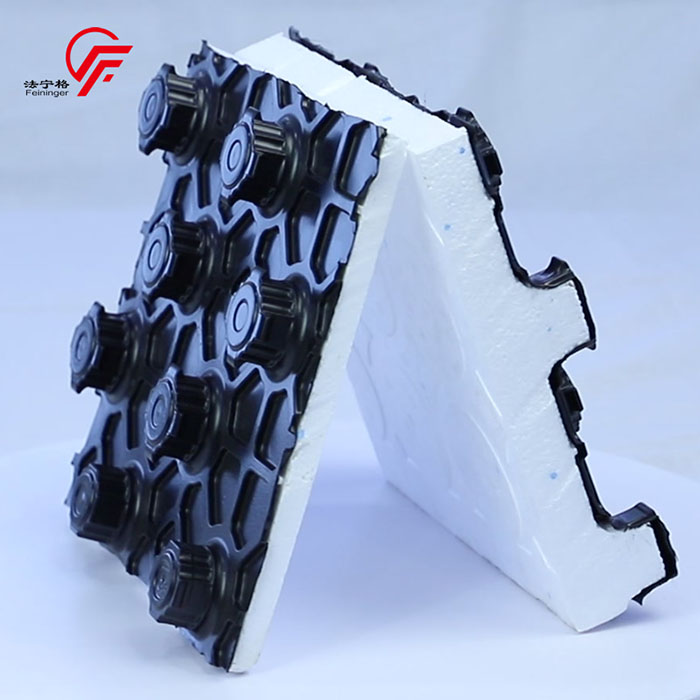

EPS+HIPS Film Underfloor Heating Moudle/Panel/Plate for Floor Heating System

EPS+HIPS Film Underfloor Heating Moudle/Panel/Plate for Floor Heating System

This series is a kind of underfloor Heating Panel, EPS+HIPS Film, which is EPS Electronic thermal Film-Coated plastic-Absorbing composite Module.

Feininger EPS system board with HIPS Film. It have very good waterproof as the EPS panel is thermo shaped with high quality HIPS film which thickness is 0.20mm and the overall compressive strength is ranging from 150KPA to 400KPA. The EPS material is B1 fire retardant which can reach EU standard.
Inquiry Download
Description
EPS+HIPS Film Underfloor Heating Moudle/Panel/Plate for Floor Heating System


This series is a kind of underfloor Heating Panel, EPS+HIPS Film, which is EPS Electronic thermal Film-Coated plastic-Absorbing composite Module.

Feininger EPS system board with HIPS Film. It have very good waterproof as the EPS panel is thermo shaped with high quality HIPS film which thickness is 0.20mm and the overall compressive strength is ranging from 150KPA to 400KPA. The EPS material is B1 fire retardant which can reach EU standard.
Advantages

1. Saving the pipeline laying time: 50% at most
2. Improve the working efficiency: only one labor can finish the work
3. Mute and Moisture-proof.
4. Embedded pipeline design which can protect the pipeline from damage
5. No need staples during installation, so it can avoid damage of the insulation layer.
6. Uniform pipeline laying: keep the same distance between pipes

Specifications
Size1320*720*37mm (L*W*H)or customized
Grooving tube SizeΦ16mm/20mm
MaterialEPS Foam Board +HIPS
Temperature limited-30.C,+80.C
Water absorption≤1%
Compressive strength≥ 150Kpa
Thermal conductivity≤ 0.030W/M.K
ColorBlue/Yellow/Green
Fireproof gradeB1/B2
OtherCFC HCFC Free; HBCD Free; ECO Friendly


Installation Instructions

1. The ground must be flat and clear

2. Tape the boundary strip

3. Laying the EPS+HIPS Modules

4. Intall the pipes on the EPS+HIPS Modules

5. Pouring and laying the concrete to make the floor surface to be flat then install the wood floor or tile;Or Install the wood floor directly after the pipe


Application

This is a high-efficiency energy-saving product, with ultra-low thermal conductivity, good thermal insulation performance, open the floor heating room heating fast, holding time long.
